How should I deal with a message to replace consumables?

A message for replacing consumables appears as it gets closer to the time to replace the consumables.
To replace the consumables:

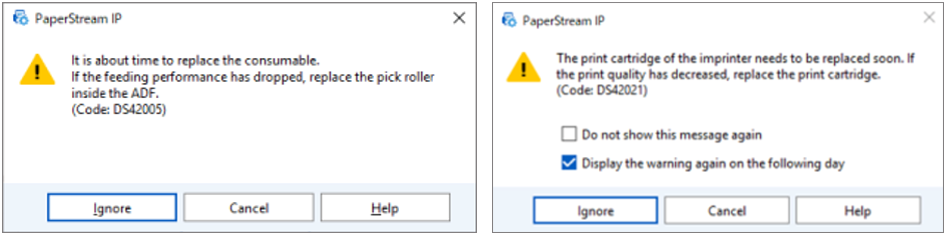

The following messages(Code: DS42005 / DS42021) appear.



You can still continue scanning even when these messages are displayed by clicking the [Ignore] button.
Note that while the brake roller and pick roller are described below, the process is the same for the other rollers and the print cartridge, so you can refer to the below description when replacing the other rollers or the print cartridge.



Please deal with the issue in the following order.

1. Click [Start] menu > [fi Series]  > [Software Operation Panel] to start up the Software Operation Panel.


2. From the list on the left, select [Device Setting].

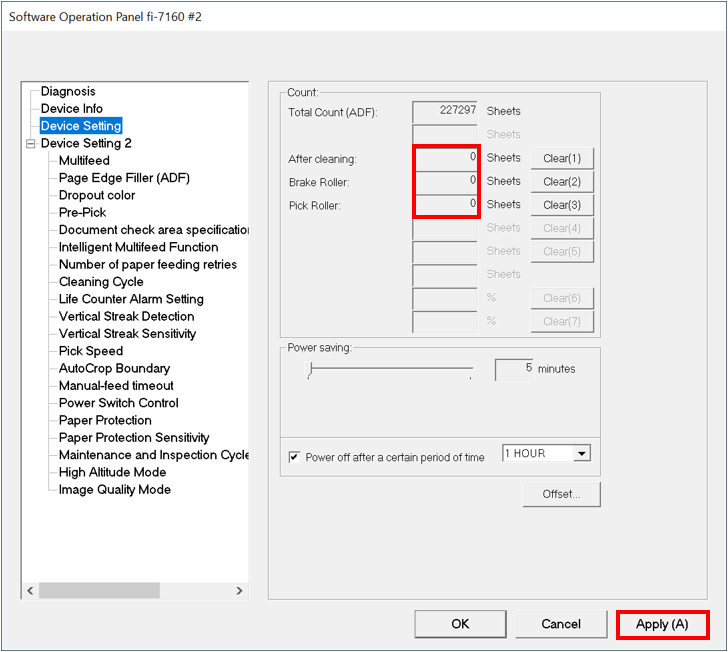

3. Check the sheet counters for the consumables such as the brake roller and pick roller.
   When the background color is light yellow, the time to replace the consumables(*1) is approaching.
   When the background color is dark yellow, the time to replace the consumables(*1) has passed.


4. Replace any consumables that are approaching or have exceeded the replacement time.
   The life cycles of the brake roller and pick roller are the same, so it is recommended to change both at the same time.





For information on purchasing the consumables, contact a local subsidiary near you.
For details about replacing the consumables, refer to "Replacing the Consumables" in the Operator's Guide or the replacement procedure supplied with the consumables.
The Operator's Guide can be downloaded from the following website.
https://www.pfu.ricoh.com/global/scanners/fi/support/manuals/

[Attention] Use genuine articles to replace the consumables. If consumables are replaced with non-genuine articles, product-specific performance cannot be fully achieved and the scanner may be damaged. If the scanner is damaged or any failures or errors arise from using non-genuine articles, repairs will be charged even within the warranty period.

3. Resetting the sheet counters for consumables

1. Click [Start] menu > [fi Series]  > [Software Operation Panel] to start up the Software Operation Panel.


2. From the list on the left, select [Device Setting].



3. Click the [Clear] button for the consumable or consumables that you replaced, such as the brake roller and pick roller.



4. Make sure that "0" is displayed for the counter value, then click the [Apply] button.



5. After a confirmation message is displayed, click the [OK] button.




*1:

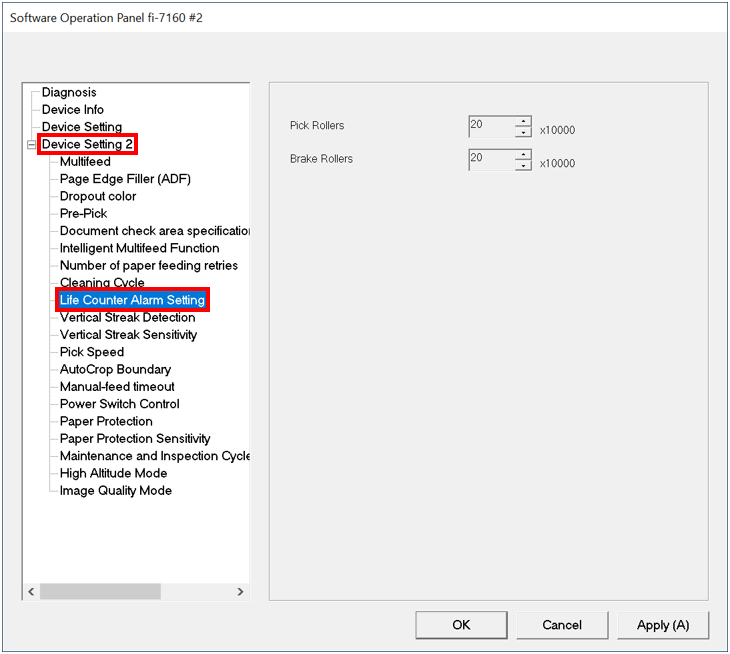

You can specify the replacement cycles for consumables in [Life Counter Alarm Setting]. Start up the Software Operation Panel and select [Device Setting 2] > [Life Counter Alarm Setting] from the list on the left. Specify a value as the replacement cycle for each of the consumables. The value can range from 10,000 to 2,550,000 sheets (in increments of 10,000). If you want the message to stop showing temporarily, change the value to a large number.



Reference:
[Message for replacing consumables]

• [Do not show this message again] or [Remind again after scanning 0 sheets > Display the warning again on the following day] cannot be selected for some scanner models.
• You can continue scanning by clicking the [Ignore] button.

[How to use the operator panel]

• For scanners equipped with a operator panel with an LCD display, sheet counters for consumables can also be checked and cleared from the operator panel. For details, refer to "How to Use the Operator Panel" in the Operator's Guide.
