Printed Code 39 barcodes may contain codes unsupported by the PaperStream Capture default supported format (Full ASCII mode) (*1).
Clear the [Use Code 3 of 9 in Full ASCII mode] checkbox in the following procedure and check whether the problem is solved.
Clear the [Use Code 3 of 9 in Full ASCII mode] checkbox in the following procedure and check whether the problem is solved.
Tips!
- This checkbox is available in PaperStream Capture 2.10.9 or later. If you are using an earlier version, update it to the latest version
and configure this setting.
<Setting Procedure>
- Click [Start] menu on Windows > [PaperStream Capture], then open [Administrator Tool]. (*2)

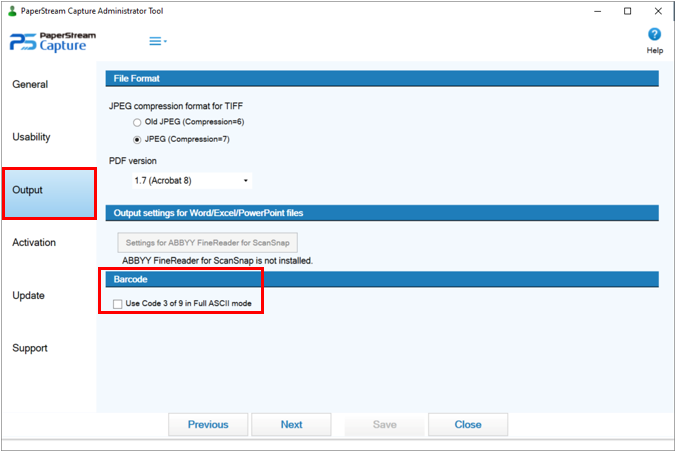

- Clear the [Use Code 3 of 9 in Full ASCII mode] checkbox under [Barcode] in the [Output] tab.
- Click the [Save] button.
- Click the [Close] button.
| *1 | For example, barcodes may contain codes with a sequence of symbols and numbers such as "+0". |
| *2 |
Make sure to open [Administrator Tool] from the Start menu on Windows, since the checkbox will not be displayed if you open [Administrator Tool] from the menu on the PaperStream Capture window.
|
