When a multifeed is detected during scanning or when an abnormality is detected in a scanned image, the function displays the detected image with marks (thumbnail background colors and viewer frame colors) in the image confirmation window.
Operators can check images efficiently by focusing on the marked images in the image confirmation window. In addition, when an index file is set to be output, the detected information can be output in the index file.

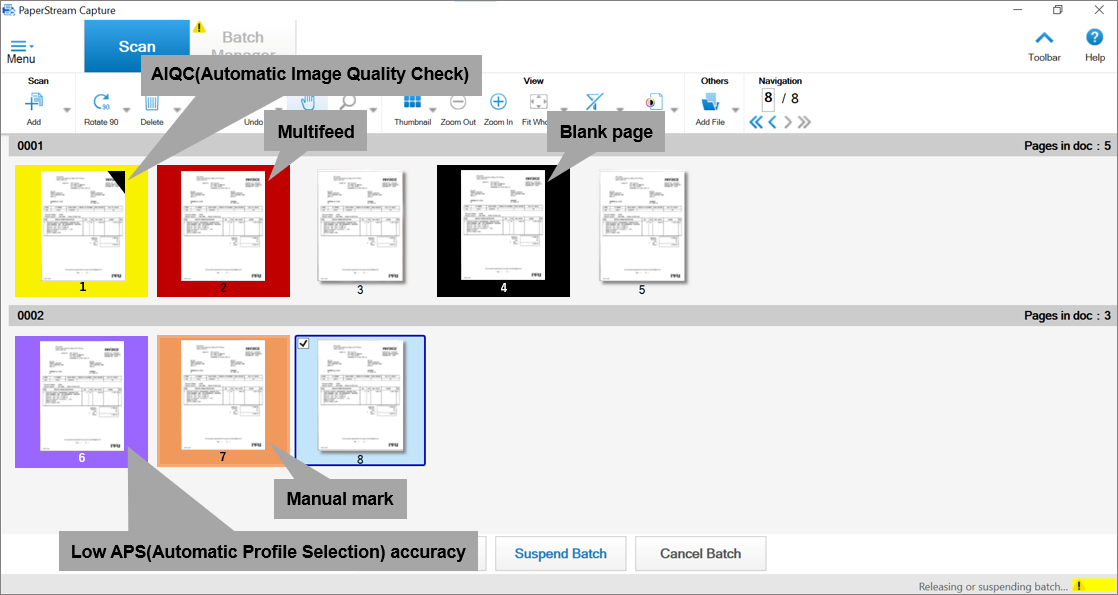

- The following types of marks (thumbnail background colors and viewer frame colors) are available:
Yellow: AIQC (detects a fold or tear in the documents)
Red: Multifeed (detects overlapping)
Black: Blank page (detects a blank page)
Purple: Low APS accuracy (the scanned image is detected by Automatic Profile Selection and is recognized inaccurately)
Orange: Manual mark (marked by user)
When [Multifeed] is selected for this function, scanning is not interrupted even if a multifeed occurs during scanning, and all loaded documents are scanned. You can improve work efficiency by checking and processing all target images after scanning.
Note: If a document is jammed, scanning will be stopped to prevent the document from being damaged.
[Important]

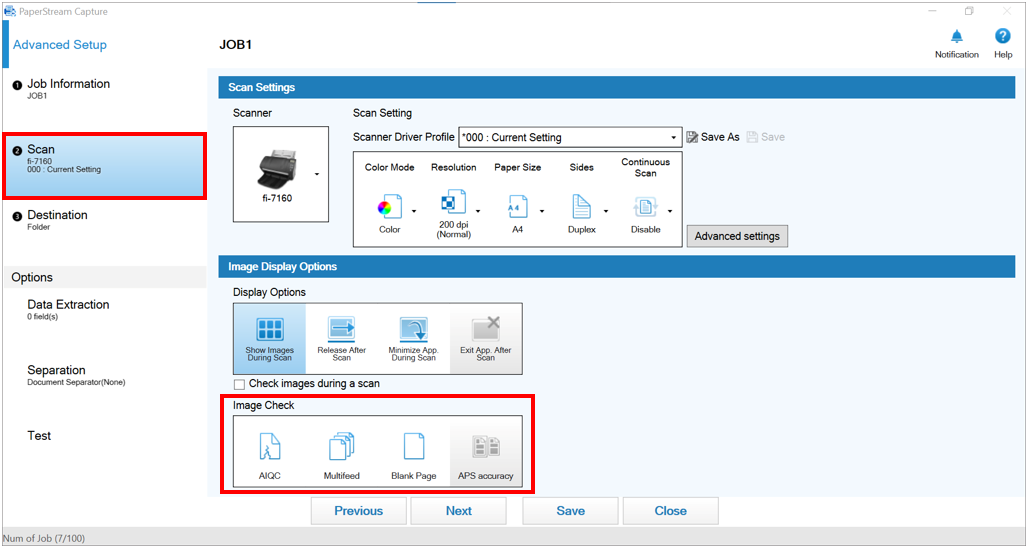

If you select [AIQC], [Multifeed], [Blank page], or [APS accuracy] for [Image Check] and want to check the detected images in the image confirmation window, do not select [Release After Scan] for [Display Options].
Tips!
- It is recommended that you check the scanned image for any problems if an AIQC, multifeed, or APS accuracy error is detected.

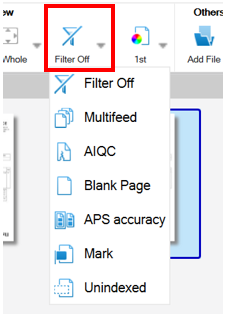

- Images with a specific mark can be displayed selectively by selecting the display filter from the toolbar in the image confirmation window.
